Key takeaways:
The article explains how to integrate GMP requirements into the pharmaceutical machine design process, from the URS to PQ qualification, taking account of automation and EU requirements. It highlights the role of documentation, validation/qualification, and risk management in ensuring sterility and compliance.
- GMP is a set of guidelines that ensure production quality and safety, covering raw materials, equipment, personnel, and hygiene.
- Machine design for the pharmaceutical industry should proceed from the User Requirements Specification (URS) to final qualification (PQ).
- The URS defines functional, performance, and safety requirements, as well as compliance with regulations and standards.
- Industrial automation (SCADA, PLC) supports GMP by monitoring and controlling processes, reducing errors and contamination.
- Machines must comply with the Machinery Directive 2006/42/EC; CE marking requires, among other things, a risk assessment and compliance testing.
Good Manufacturing Practice (GMP) is a key element in ensuring the quality and safety of medicinal products. In the pharmaceutical industry, designing machines for pharmaceutical applications in compliance with GMP standards is essential for maintaining sterility and regulatory compliance. This article takes you through the pharmaceutical machine design process, from preparing the User Requirements Specification (URS) to final qualification (PQ).
What is GMP?
Good Manufacturing Practice (GMP) is a set of guidelines and procedures intended to ensure that medicinal and food products are manufactured safely and in accordance with defined quality standards. GMP covers every aspect of production, from raw materials, premises, and equipment to staff training and hygiene. The key elements of GMP are:
- Quality control: Regular testing and monitoring of raw materials, intermediates, and finished products to ensure they meet specified requirements.
- Documentation: Maintaining detailed records of all production processes, making it possible to trace product batches at every stage of manufacture.
- Hygiene and training: Maintaining high hygiene standards in the production area and providing regular staff training on GMP principles.
- Validation and qualification: Processes, equipment, and systems must be regularly validated and qualified to ensure compliance with GMP standards.
- Risk management: Identifying, assessing, and controlling risks associated with production processes to minimize the possibility of contamination and errors.
GMP is required by regulations in many countries around the world and provides the basis for obtaining licences to manufacture and market pharmaceutical and food products. Compliance with GMP principles ensures that products are safe for consumers and meet all quality requirements.
GMP: User Requirements Specification (URS)
Definition and Importance of URS
The User Requirements Specification (URS) is a document that defines the requirements and expectations of end users for new equipment or a new system. The URS forms the foundation of the entire process of designing, installing, and qualifying equipment in the pharmaceutical industry.
This document is critical because it ensures that all user needs are taken into account and that the machine will operate in accordance with GMP requirements.
Key Elements of the URS
The URS includes a number of key elements, such as:
- Functional requirements: A description of the core functions the machine must perform.
- Performance requirements: Definition of machine performance, such as production speed and efficiency.
- Safety requirements: Safety measures that must be built into the machine to protect both the product and operators.
- Regulatory and standards compliance requirements: A specification of all regulatory requirements the machine must meet.
URS Development Process
Creating a URS is a multi-stage process that includes:
- Identifying user needs: Gathering information from all potential users about their requirements and expectations.
- Consulting stakeholders: Working with different company departments to ensure that all aspects are covered.
- Documenting and reviewing the URS: Writing the requirements into a formal document and having it reviewed by all relevant parties for approval.
GMP and Industrial Automation
The Role of Automation in GMP
Industrial automation plays a key role in ensuring GMP compliance. The use of automated control systems enables precise monitoring and control of production processes, minimizing the risk of human error and contamination.
Examples of Automation Applications
- SCADA systems: Real-time monitoring and control of production processes.
- Programmable Logic Controllers (PLCs): Automation of machine operations and control of production parameters.
GMP and the Machinery Directive
The Importance of the Machinery Directive
The Machinery Directive (2006/42/EC) sets out safety requirements for machinery in the European Union. In the GMP context, it is important that pharmaceutical machines meet these requirements to ensure safe operation and regulatory compliance.
Integrating GMP Requirements with the Machinery Directive
Designing pharmaceutical machines requires compliance with both GMP requirements and the Machinery Directive. This means designers must ensure that machines are safe for operators and do not compromise product quality.
CE Marking and Good Manufacturing Practice
The CE Marking Process
CE marking indicates conformity with European requirements for safety, health, and environmental protection. To obtain CE marking, machines must undergo a conformity assessment process, which includes:
- Risk assessment: Identifying and evaluating potential hazards associated with use of the machine.
- Testing and certification: Carrying out tests to confirm that the machine meets all applicable standards and regulations.
The Role of CE Marking in GMP
Obtaining CE marking for pharmaceutical machines is essential because it ensures that these machines meet the highest safety and quality standards required by GMP.
Automation of Production Processes
Benefits of Automation
Automation of production processes offers many benefits, including:
- Higher efficiency: Automation enables faster and more efficient production.
- Improved quality: Automated control systems minimize the risk of errors and contamination.
- Cost reduction: Automation can reduce operating costs by limiting the need for manual labor.
Examples of Automation in the Pharmaceutical Industry

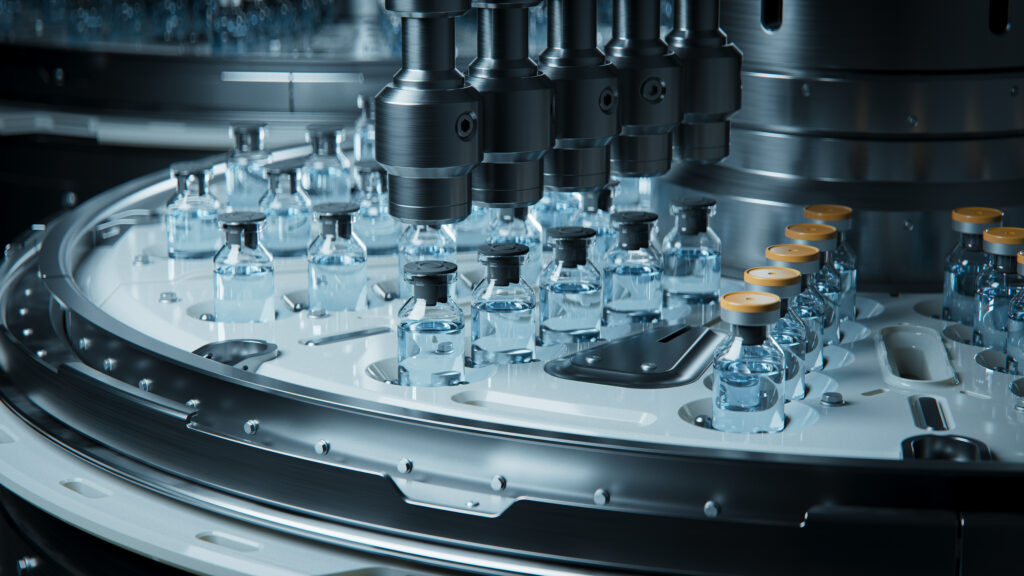

- Filling and packaging lines: Automated production lines that fill and package products without human intervention.
- Conveying systems: Automated systems for moving materials and products within the plant.
GMP: Machine Design and Development
Preliminary Design
Preliminary design includes developing concepts and initial designs that comply with the requirements defined in the URS. These stages include:
- Consultation with end users: To ensure the design meets all needs and expectations.
- Feasibility analysis: Assessing the technical and economic aspects of the project.
Detailed Design
Detailed design includes preparing precise drawings and technical specifications. These stages include:
- Selection of materials and components: Ensuring that all materials comply with GMP requirements.
- Risk assessment: Identifying potential hazards and developing strategies to minimize them.
If a machine is designed in accordance with the URS before the production process begins, it must undergo qualification. This process consists of three stages:
| Stage | Purpose | Key Steps |
|---|---|---|
| Installation Qualification (IQ) | Ensuring that the machine has been installed correctly in accordance with the manufacturer’s recommendations. | Verification against technical documentation, leak testing. |
| Operational Qualification (OQ) | Ensuring that the machine operates correctly across its full operating range. | Airflow testing, differential pressure testing, parameter monitoring. |
| Process Qualification (PQ) | Confirming that the machine can produce in accordance with process and product requirements. | Process testing, aseptic operation simulations, monitoring of critical parameters. |
Installation Qualification (IQ)
Purpose and Importance of IQ
Installation Qualification (IQ) is intended to ensure that the machine has been installed correctly in accordance with the manufacturer’s recommendations and meets all URS requirements.
Key Steps in IQ
- Verification against technical documentation: Ensuring that all components are installed correctly.
- Leak and integrity testing of the filtration system: Ensuring that filtration systems operate correctly and that there are no leaks.
Operational Qualification (OQ)
Purpose and Importance of OQ
Operational Qualification (OQ) is intended to ensure that the machine operates correctly across its full operating range and meets all process requirements.
Key Steps in OQ
- Airflow, differential pressure, airflow direction, and airflow visualization tests: Ensuring that environmental conditions are suitable for sterile production.
- Monitoring and control of microbiological parameters and temperature: Ensuring that the machine operates under safe and controlled conditions.
Process Qualification (Performance Qualification – PQ)
Purpose and Importance of PQ
Process Qualification (PQ) is intended to confirm that the machine can manufacture in line with process and product requirements while ensuring high product quality and sterility.
Key Steps in PQ
- Process tests covering typical and worst-case operating conditions: Ensuring that the machine performs correctly under different operating conditions.
- Aseptic operation simulations: Conducting tests under aseptic conditions to confirm that the machine can produce sterile products.
Air Cleanliness Classes
Definition and Importance of Air Cleanliness Classes
Air cleanliness classes define contamination levels in the air within controlled manufacturing environments. In the pharmaceutical industry, maintaining the appropriate cleanliness classes is essential for ensuring product sterility.
Manufacturing Environment Requirements
- Class A: The highest cleanliness level, used in critical manufacturing areas such as aseptic filling.
- Class B: Background environment for Class A areas.
- Classes C and D: Used for less critical manufacturing operations.
Monitoring and Control of Air Cleanliness
- Monitoring techniques: Using sensors and monitoring systems to continuously check contamination levels.
- Ensuring compliance: Regular audits and testing to ensure that the manufacturing environment meets the required cleanliness classes.
| Cleanliness Class | Application | Requirements |
|---|---|---|
| Class A | The highest cleanliness level, aseptic filling | Minimum particulate contamination levels, microbiological control. |
| Class B | Background environment for Class A areas | Maintaining low contamination levels in cleanrooms. |
| Class C | Less critical manufacturing operations | Cleanliness standards appropriate for less critical processes. |
| Class D | The lowest cleanliness level | Basic requirements for particulate contamination control. |
GMP: SCADA and PLC Programming
The Importance of SCADA in GMP
SCADA (Supervisory Control and Data Acquisition) systems are used to monitor and control manufacturing processes in real time, which is essential for ensuring GMP compliance.
The Role of PLC Programming
Programmable Logic Controllers (PLCs) automate machine operations and control critical process parameters, enabling accurate and repeatable control of manufacturing processes.
GMP: Technical Documentation
The Importance of Documentation
Technical documentation is a key element in ensuring GMP compliance. The documentation should cover all aspects of machine design, installation, qualification, and maintenance.
Key Elements of Technical Documentation
- Technical drawings: Detailed machine drawings and diagrams.
- Technical specifications: A description of all components and materials.
- Qualification protocols: Documentation of IQ, OQ, and PQ results.
Maintenance and Updating of Documentation
Technical documentation should be updated regularly to reflect any changes to the machines or manufacturing processes.
GMP: Operating Instructions
Requirements for Operating Instructions
Operating instructions should be clear and precise to ensure that operators can use the machines safely and effectively.
Preparing Operating Instructions
- Simple and easy-to-understand instructions: Using plain language and illustrations.
- Step by step: A detailed description of operating, maintenance, and emergency procedures.
The Importance of Operating Instructions for Safety and GMP Compliance
Operating instructions are essential to ensure that machines are used as intended, minimizing the risk of errors and contamination.
GMP: Design Office
Role of the Design Office
The design office plays a key role in the design and verification of pharmaceutical machinery. It is responsible for preparing detailed designs and technical specifications.
Design and Verification Processes
- Machine design: Developing concepts and detailed designs.
- Compliance verification: Ensuring that designs meet all URS and GMP requirements.
Cooperation with Other Departments
The design office works with other departments, such as production, quality control, and quality assurance, to ensure compliance with GMP requirements and standards.
GMP: Machine Monitoring and Maintenance
Importance of Regular Monitoring
Regular machine monitoring is essential to ensure that equipment operates in line with GMP requirements. Monitoring includes:
- Machine settings and alarm management: Regular checking and calibration of machine settings.
- Data analysis: Analyzing data from monitoring systems to identify potential issues.
Regular Maintenance Based on Risk Analysis
Machine maintenance should be planned based on risk analysis to prevent failures and minimize the risk of contamination.
Operating Procedures
- Problem detection and repair: Procedures for identifying and correcting machine issues.
- Documentation of rejected units and root cause analysis: Recording and analyzing rejection cases to improve production processes.
Designing pharmaceutical machinery in accordance with GMP is a comprehensive process that ensures the highest standards of quality and safety. It includes creating the User Requirements Specification (URS), integrating industrial automation, meeting the requirements of the Machinery Directive, and obtaining the CE mark. Key machine qualification stages, such as Installation Qualification (IQ), Operational Qualification (OQ), and Process Qualification (PQ), are essential for ensuring GMP compliance. Regular machine monitoring and maintenance, supported by SCADA and PLC systems, together with well-maintained technical documentation and operating instructions, help ensure safe and efficient production.
GMP – Machine Design for the Pharmaceutical Industry
Good Manufacturing Practice (GMP) is a set of guidelines and procedures that ensure medicinal products are manufactured safely and in compliance with quality standards. It covers, among other things, quality control, documentation, hygiene and training, as well as validation and qualification.
The User Requirements Specification (URS) is a document that defines end users’ requirements and expectations for new equipment or a new system. It forms the basis for design, installation, and qualification to ensure that the machine operates in compliance with GMP requirements.
The URS covers functional requirements, performance requirements, safety requirements, and compliance requirements for applicable regulations and standards. This makes it easier to verify whether the project meets user needs and GMP requirements.
Automation enables precise monitoring and control of processes, reducing the risk of human error and contamination. Examples include SCADA systems for real-time supervision and PLCs for automating operations and controlling parameters.
The Machinery Directive (2006/42/EC) sets out machine safety requirements in the EU, and in design for the pharmaceutical industry these must be considered together with GMP requirements. The CE marking is obtained, among other things, through risk assessment and testing, confirming that the machine complies with safety and quality requirements.
